Product specifications
Fire-Rated, Watertight and Gastight Ship Doors
Custom-engineered marine doors manufactured in accordance with owner, shipyard and project-specific requirements. Available in multiple fire-resistance and tightness configurations for military, commercial and specialized vessels.
Selected configurations are RINA type-approved for B-15 and A-60 fire classifications. Other configurations can be engineered and supplied in accordance with the applicable project specifications, classification-society requirements and approved technical documentation.
Design basis
Owner, shipyard and project-specific specifications
Available classifications
B-15, A-0, A-30 and A-60, subject to approved configuration
Available tightness options
Weathertight, watertight and gastight
Customization
Dimensions, frame, opening direction, locking system, seals, hardware and finish
Documentation
Project-specific drawings, certificates and quality records
Warranty
24 months, subject to the applicable contractual terms
Overview
Each door assembly is developed according to the vessel's structural arrangement and operational requirements. The final configuration may include customized dimensions, frame geometry, opening direction, hinge arrangement, locking system, sealing solution, surface finish and installation interface.
Engineering and manufacturing are carried out based on approved drawings, owner specifications, shipyard standards and applicable classification requirements.

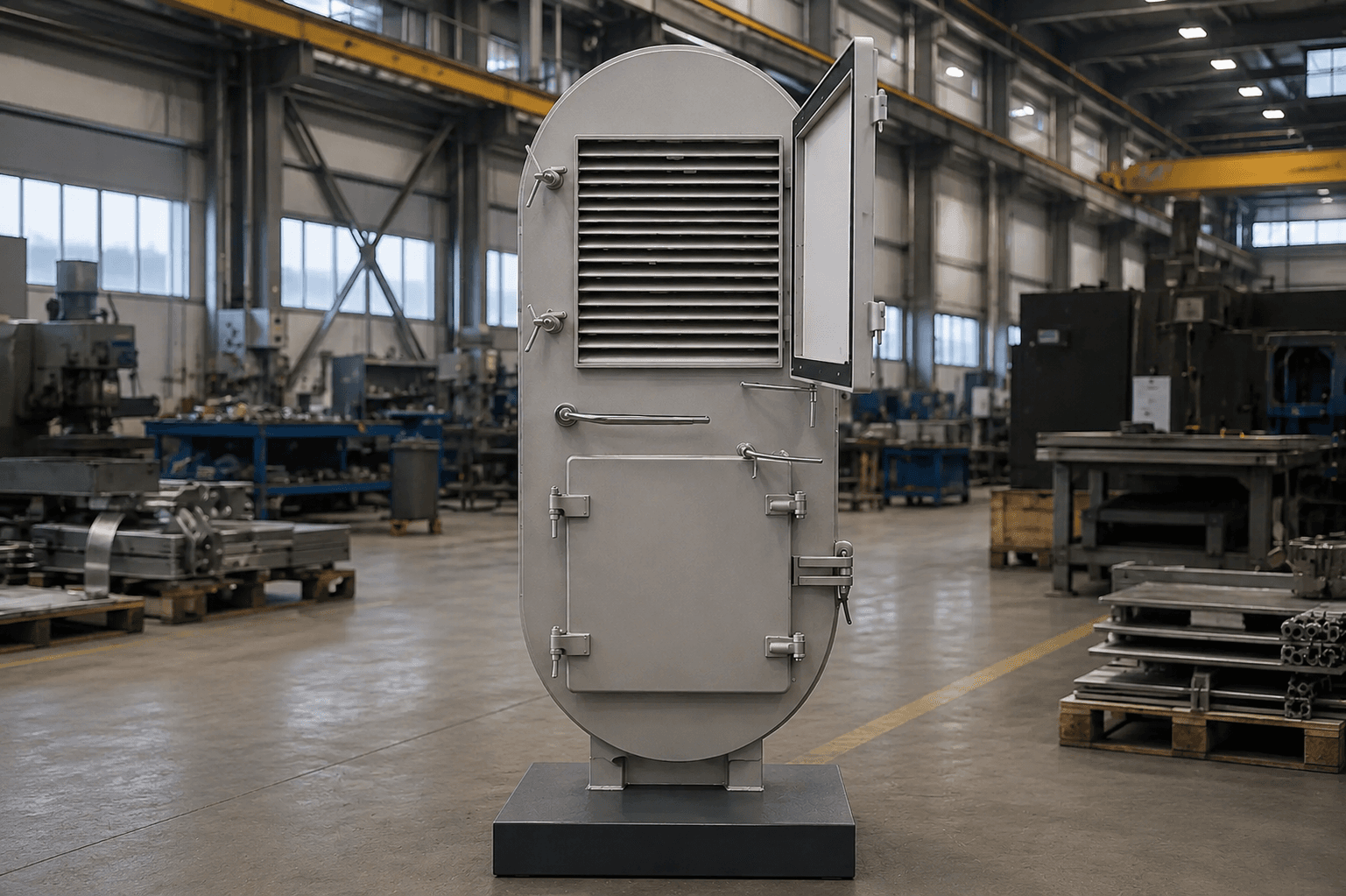

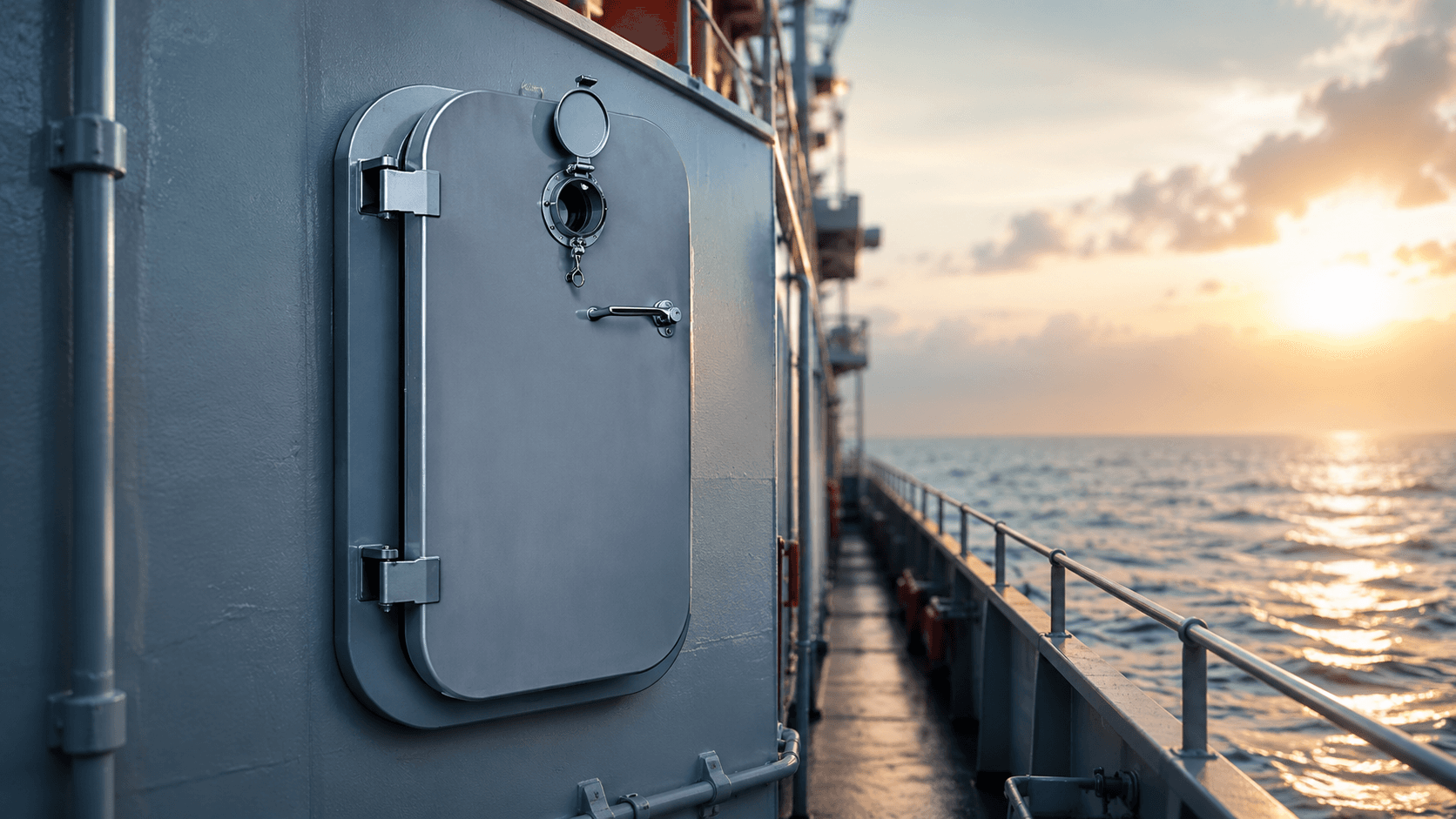

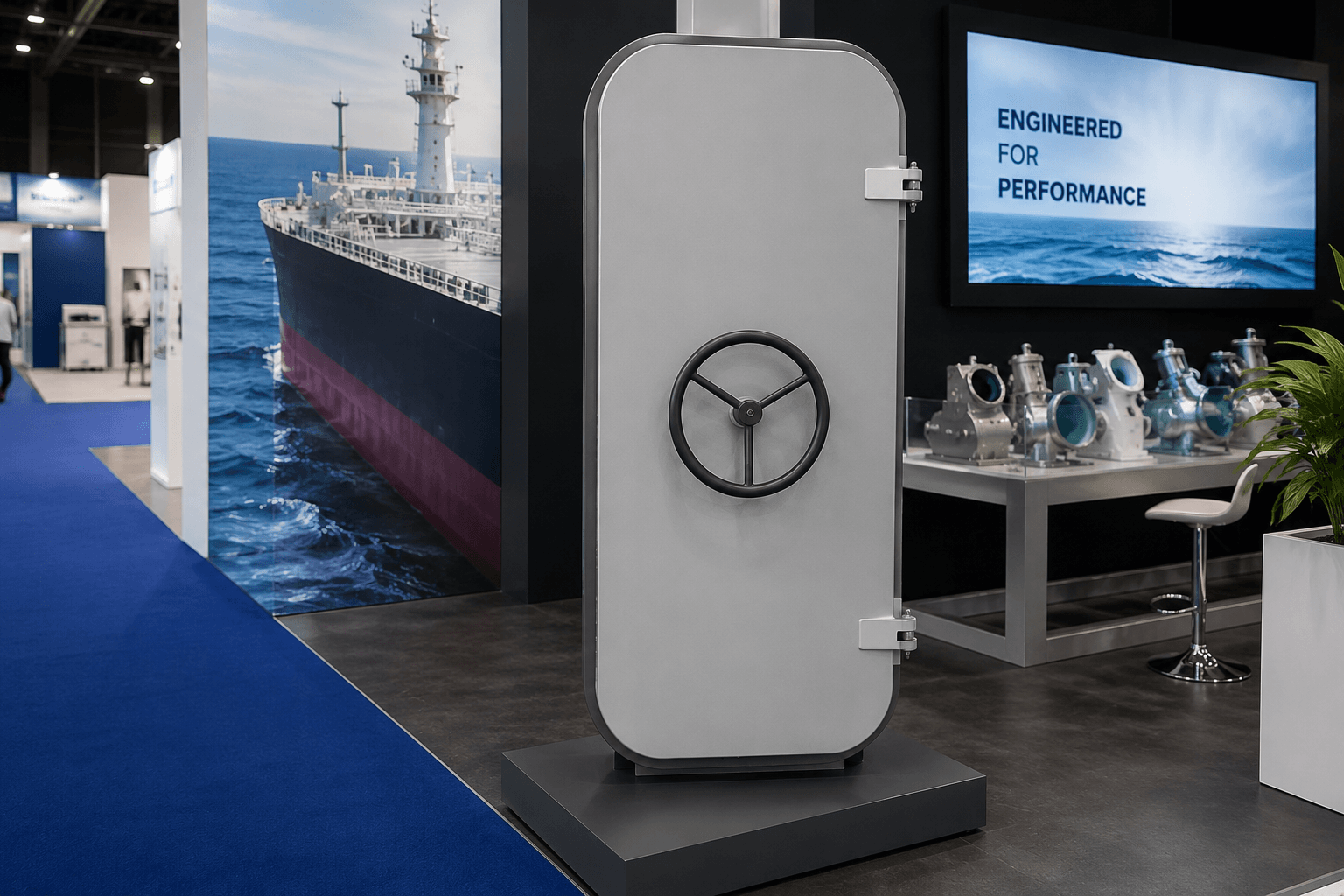

Gallery
Fire-Rated, Watertight and Gastight Ship Doors in detail
Available Configurations
Fire-Rated Doors
- B-15 Class Doors — Designed for installation in B-class divisions requiring a certified fire-resistance performance of 15 minutes.
- A-0 Class Doors — Intended for A-class divisions where structural fire integrity is required without a specified insulation period.
- A-30 Class Doors — Designed for A-class divisions requiring fire insulation performance for up to 30 minutes, subject to the approved project configuration.
- A-60 Class Doors — Designed for high-protection areas requiring fire integrity and insulation performance for up to 60 minutes.
Tightness Configurations
- Weathertight Doors — Designed to limit the ingress of rain, spray and external water under normal marine operating conditions.
- Watertight Doors — Engineered for compartments and access points requiring controlled resistance to water penetration. The required pressure and leakage performance are established according to the vessel specification and applicable classification requirements.
- Gastight Doors — Designed for spaces requiring controlled sealing against gas or vapour transfer. Sealing performance, gasket materials and locking arrangements are defined according to the intended application.
Design and Construction
- clear opening dimensions and overall frame size
- single-leaf or project-specific configurations
- left-hand or right-hand opening
- inward or outward opening direction
- welded, bolted or project-defined installation interfaces
- customized frame and coaming arrangements
- manual locking and multi-point securing systems
- project-specific hinges, handles and operating hardware
- fire-resistant, watertight, weathertight or gastight sealing systems
- surface treatment, coating and finishing according to the vessel's paint specification
- provisions for signage, vision panels or additional accessories, where permitted by the approved configuration
Final materials, plate thicknesses, reinforcements, hardware and sealing components are selected in accordance with the required classification, operating environment and approved design.
Applications
- naval and defence vessels
- commercial ships
- offshore and support vessels
- passenger and service vessels
- engine rooms and machinery spaces
- accommodation and technical compartments
- exposed deck access points
- controlled or restricted-access areas
- specialized marine and industrial installations
Engineering and Documentation
- general arrangement drawings
- installation and interface drawings
- material specifications
- manufacturing documentation
- inspection and quality records
- certificates of conformity
- type-approval documentation, where applicable
- operation and maintenance instructions
- project-specific inspection and test documentation
All documentation is prepared in accordance with the agreed contractual scope and the applicable owner, shipyard and classification requirements.
Quality and Compliance
RINA type approval applies to the approved B-15 and A-60 configurations and should not be presented as covering every available door variant unless confirmed by the corresponding approval documentation.
Technical Information
- Design basis
- Owner, shipyard and project-specific specifications
- Available classifications
- B-15, A-0, A-30 and A-60, subject to approved configuration
- Available tightness options
- Weathertight, watertight and gastight
- Customization
- Dimensions, frame, opening direction, locking system, seals, hardware and finish
- Documentation
- Project-specific drawings, certificates and quality records
- Warranty
- 24 months, subject to the applicable contractual terms
